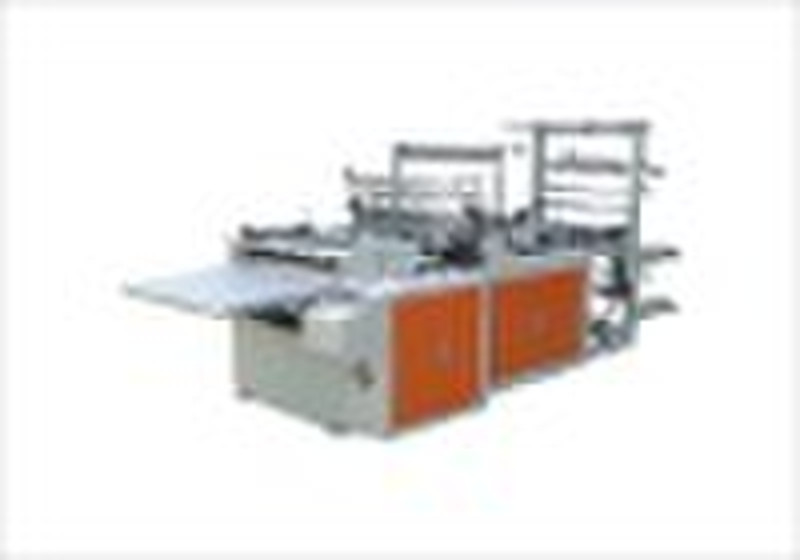

RDL series multifunctional computer thermal cuttin

RDL series multifunctional computer thermal cutting bag-making machine Use This machine is suitable for thermal cutting and bag making of such printing and non-printing plastic films BOPP,OPP and PE, etc. and it is a kind of deal equipment for making sock bag towel bag, bread bag and ornaments bag, etc. Performance and Characteristics The whole machine adopts microcomputer control and material-pulling by stepping motor. (Servomotor control system can be selected and quipped).Arbitrary fixed-length, accurate and stable step photoelectric tracking, stopping automatically when the label is lost.Automatic and synchronous two-side tape gluing, automatic punching.Automatic counting and settable counting alarm.Heat-sealing decorative border, automatic constant temperature, firm and smooth sealing.Main Technical Variables Model RDL-700 RDL-800 RDL-900 RDL-1000 Max. Width of Base Material 700mm 800mm 900mm 1000mm Max. Cutting Length 50-700mm 50-700mm 50-700mm 50-700mm Max. Bag-making Width 680mm 780mm 880mm 980mm Production Capacity 40-140 pcs/min 40-140 pcs/min 40-140 pcs/min 40-140 pcs/min Total Power 3.6kw 3.8kw 4.5kw 4.7kw Weight of Machine 900kg 1000kg 1100kg 1200kg Overall Dimensions 3500×1100×1800mm 3500×1200×1800mm 3500×1300×1800mm 3500×1400×1800mm
